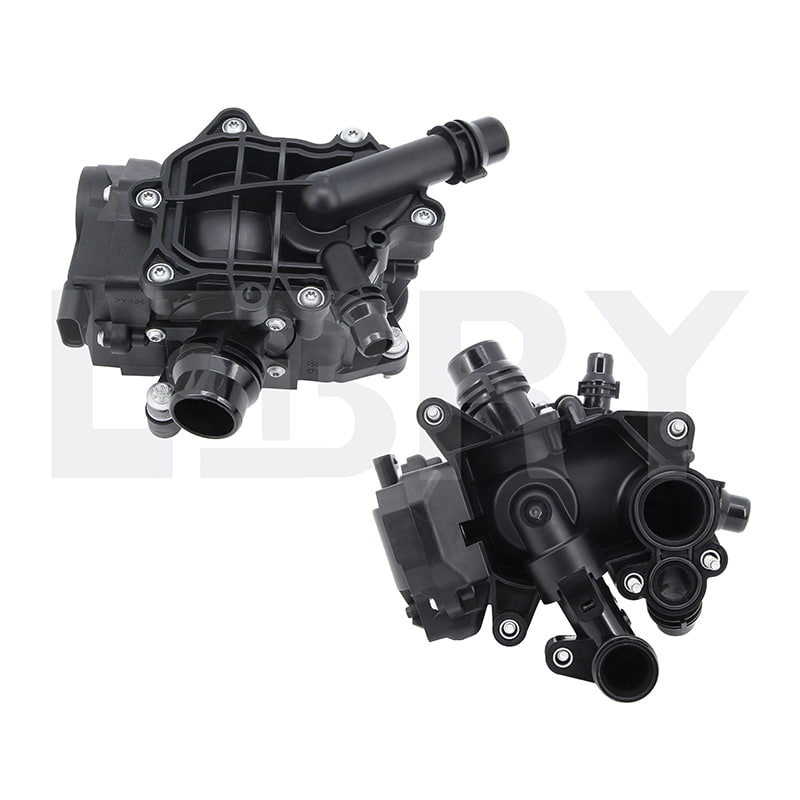

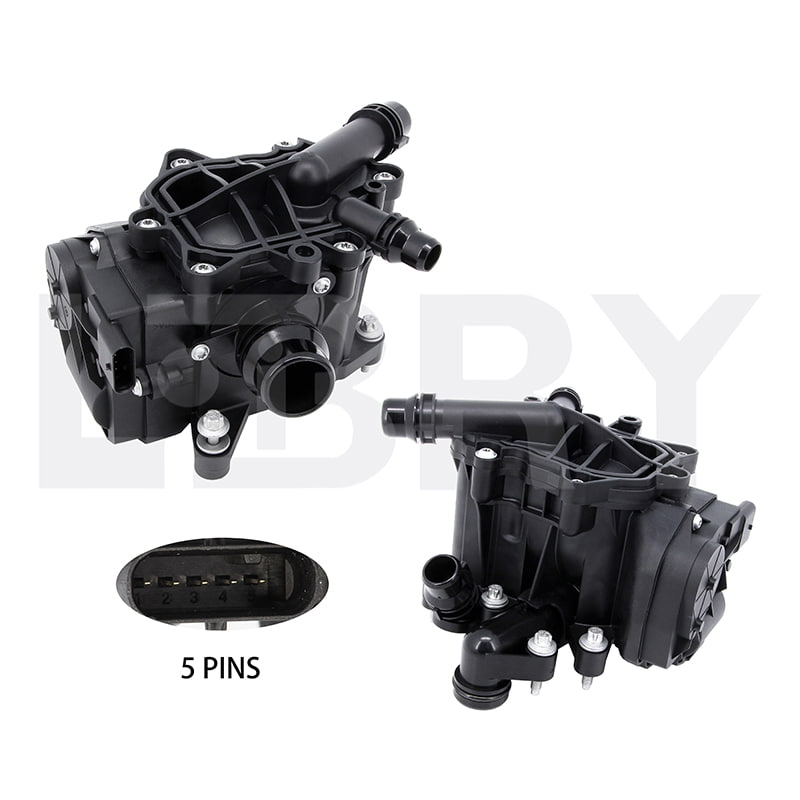

BMW MINI Engine Coolant Thermostat Housing Assembly A04070 11537644811

Engine Coolant Thermostat Housing Assembly A04070 OE# 11537644811

Phone :+86-0574-62321026

Make an inquiry

Product Description

Process Analysis of BMW B48 TU Series Engine

The rapid development of automotive engine technology calls for better and better engine cooling systems. The BMW Group has adopted the newly developed stepped-cooling control technology for its new generation of B48 TU engines.

Stepped-cooling Control System

Stepped-cooling control system adjusts the flow rate of different engine cooling circuits connected to the thermal management module (replacing the electronic thermostat) by controling the position of stepped-cooling valves according to the operating status of the engine. This function allows more precise and efficient adjustment according to the engine's operating status, reducing energy loss, lowering fuel consumption and extending engine life.

Structure of Stepped-cooling Control System

The engine employs a stepped-cooling control system, the main components of which are a thermal management module and a chamber with a rotary slide valve. The thermal management module is a new type of electric thermostat that replaces the traditional electronic thermostat.

Product Description

Thermal Management Module Specifications

The electric drive of a thermal management module consists of a DC motor, a variable speed mechanism and a position sensor as shown in Figure 1. The control unit uses the DC motor to adjust the position of the rotary slide valve within a defined range, which is monitored by the sensor.

Temperature range: -40C -130C

Angle accuracy: +3'C

Max. output torque: 7.5Nm

No-load working current:≤100mA

Rated no-load speed: 10RPM

Protocol: SENT protocol, strong anti-interference ability

Chip: Melexie chip, with high stability and high precision

Motor: OEM motor to ensure stable performance

Gears: Gears from OEM suppliers to ensure gear precision, wear life and other key parameters
